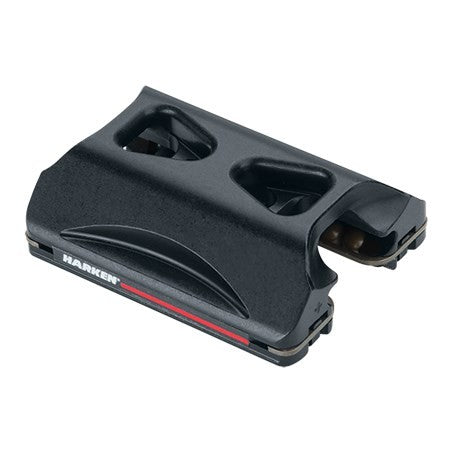

Part No. 2768
These Athwartship Loop Cars are strong, soft-attach cars with athwartship attachment holes keeping the up/down control lines as low to the car as possible. These cars can also be used for mainsheet traveler cars that require mainsheet blocks oriented 90-degrees to the mounting arrangement on 2703. They can also be used as travelers. The track for these cars comes in low-and high-beam configurations and is predrilled with holes for mounting fasteners.
| Length (mm) | 73 mm |
| Length (in) | 2 7/8 in |
| Width (mm) | 57 mm |
| Width (in) | 2 1/4 in |
| Car body height (mm) | 24 mm |
| Car body height (in) | 15/16 in |
| Weight (g) | 104 g |
| Weight (oz) | 4 oz |
| Maximum working load (kg) | 386 kg |
| Maximum working load (lb) | 850 lb |
| Breaking load (kg) | 1134 kg |
| Breaking load (lb) | 2500 lb |
| Minimum curved track radius (m) | 1.07 m |
| Minimum curved track radius (ft) | 3.5 ft |
